Šifra proizvoda: #15056

ADAPTER 600MA EUP

Adapter, 600mA, 3-4.5-6-7.5-9-12VDC, EuP

Flexible and universally applicable plug-in power supply with different, adjustable voltages.
With the help of the included key the output voltage can be adjusted in 7 different steps (3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V) at the rotary switch. With an output current of 0.6A, it delivers a maximum power of 7.2W.
Thanks to the total of 6 plug-in adapters (see below), the power supply can power a wide variety of devices, such as notebooks, external hard drives, phones, chargers, routers, scanners, DVD players, docking stations, media players, motor controllers, various office equipment, and more.

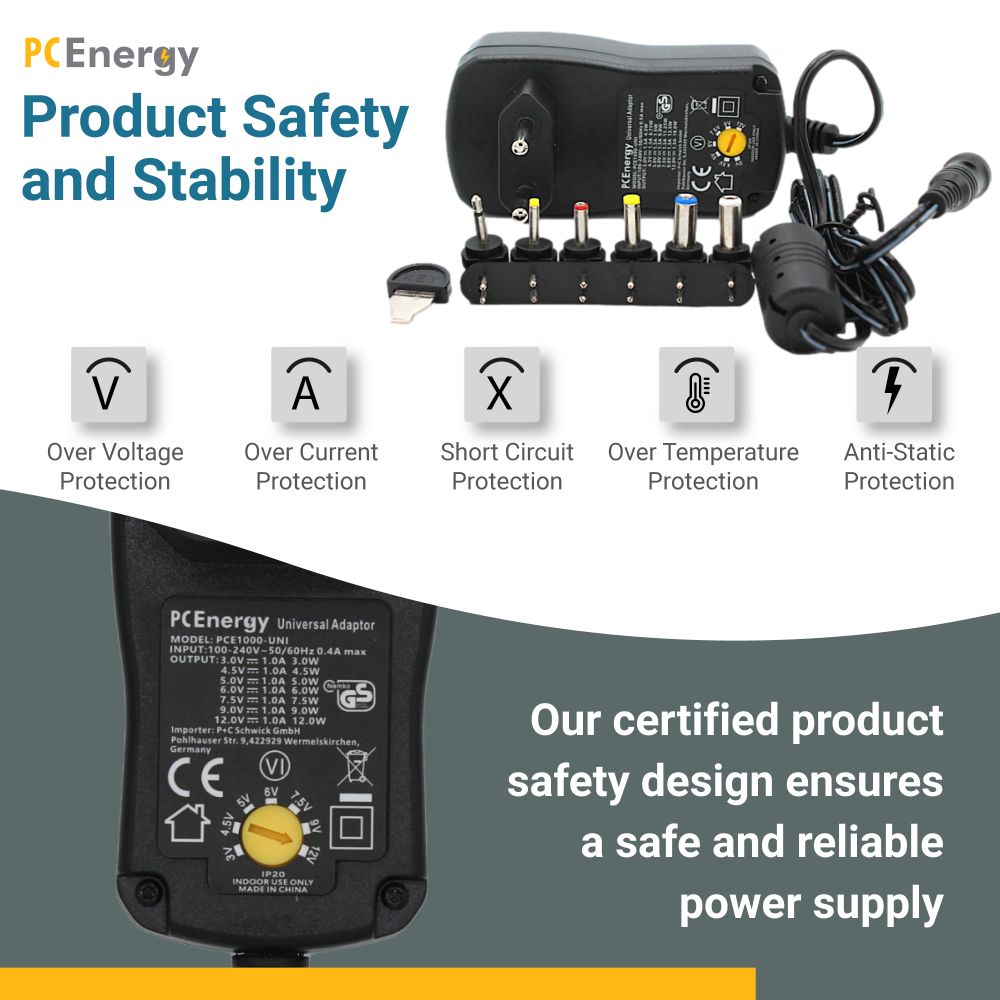

Safety is provided by overload, overvoltage and short-circuit protection, which are integrated in the device.

Complies with all EU safety standards.


High efficiency (up to 80%)
Adjustable output voltage: 3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V

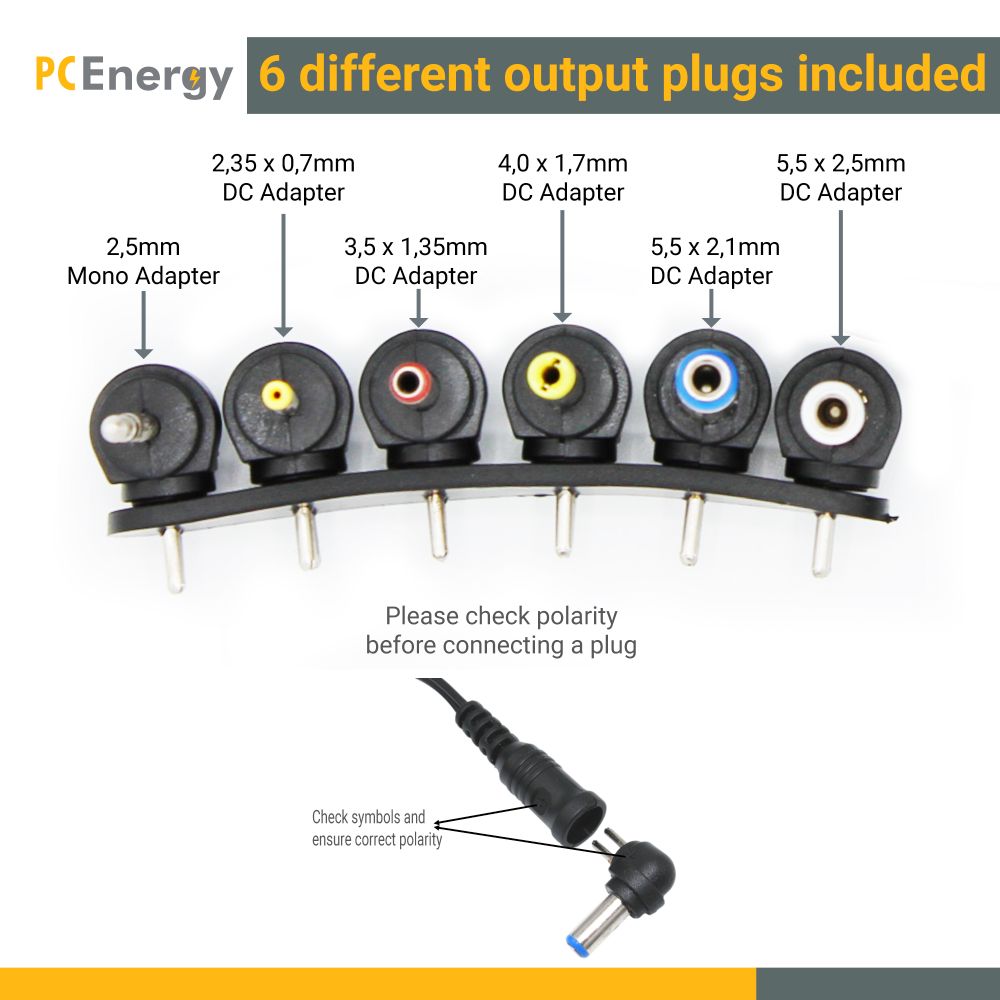

Interchangeable connectors: 2.35 x 0.7mm; 3.5 x 1.35mm; 4.0 x 1.7mm; 5.5 x 2.1mm; 5.5 x 2.5mm hollow plug (outside/inside) + 2.5 mono jack plug
Protected against overload, overvoltage and short circuits
RoHS and REACH compliant
GS certified
DIN standard compliant: EN62368-; EN60950; EN 61558; EN 55032; EN55035; EN 61000-3-2; EN 61000-3-3

Input voltage: 100-240V 50/60 HZ alternating voltage
Output voltage: 3-12V DC
Output current: 0,6A
Power: max 7,2 Watt
Operating temperature: 0 °C to 40 °C
Relative humidity during operation: 25 - 75%.
Storage temperature: -10 °C to 80 °C
Dimensions (housing without cable): 75.5 x 43.3 x 35.8mm (LxWxH)
