RFID kontroler pristupa, 125kHz
Na stanju
Šifra proizvoda: #18556

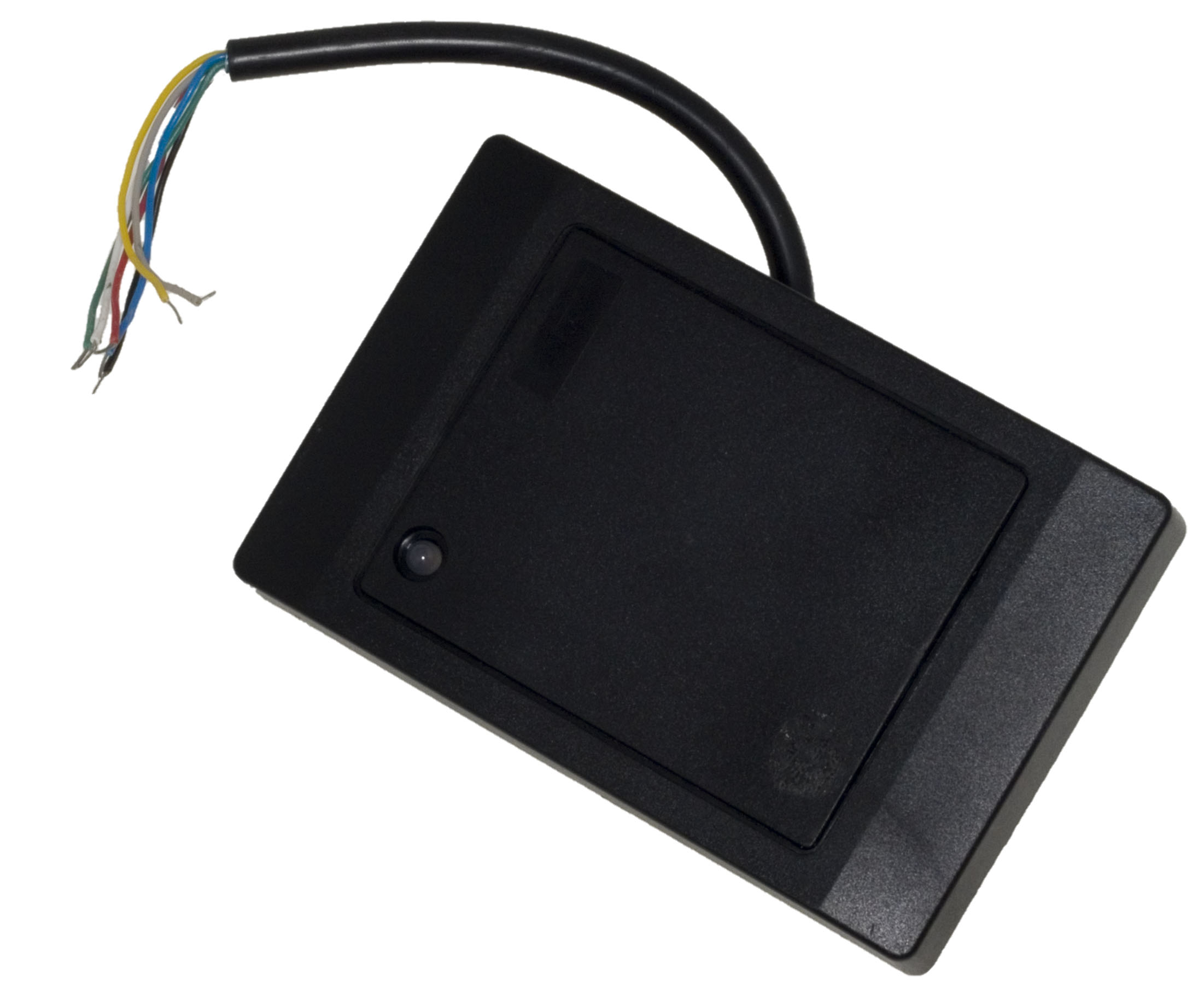

RFID GC-D10B-ID
RFID kontroler pristupa, 125kHz
Frequency: 125KHz
Reading Distance: 5 - 10 cm, depends on transponder design
Readable Card: EM4100/EM4102 and compatible cards
Power Supply: 9 - 12V DV, connect to controller
Indicators: LED and buzzer
Interface: Wiegand 26
Dimensions: 115 x 75 x 16 mm
Operating Temperature: -20°C...+70°C
Pin-Array Description
1 Red DC 12V
2 Black GND
3 Green D0
4 White D1
5 Gray Buzzer
6 Purple Select (No Contact means WG26. Connect to GND means WG34 output)
