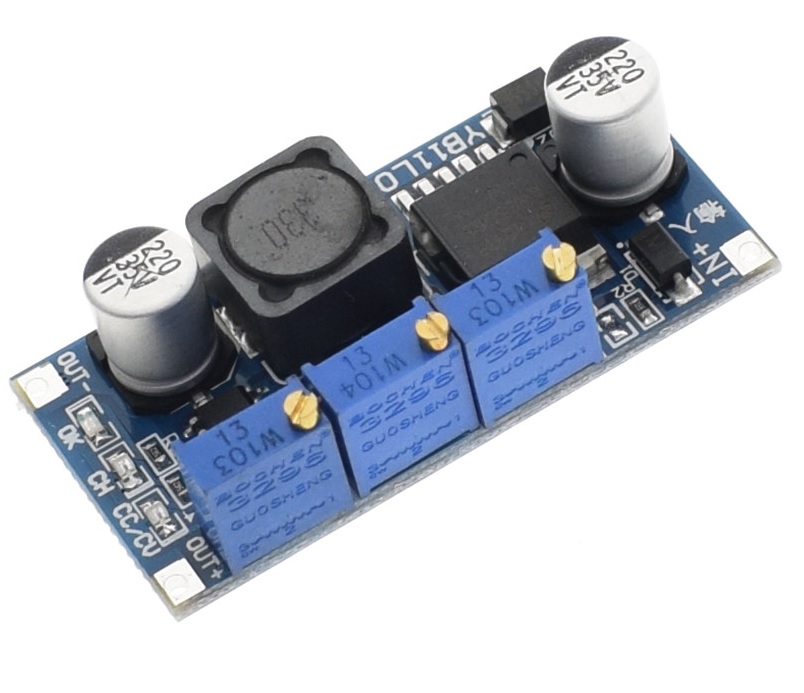

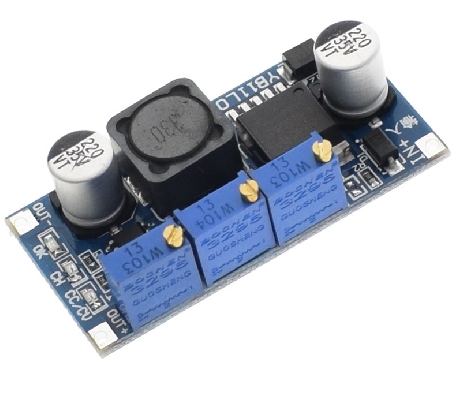

DC/DC konvertor LM2596S, Step down, 3A max, Input 7-35V, Output 1.25-30V, Constant current/voltage

Na stanju


Šifra proizvoda: #18822

DC/DC 7-35V CC/CV

DC/DC konvertor LM2596S, Step down, 3A max, Input 7-35V, Output 1.25-30V, Constant current/voltage

Input voltage: 7-35V
Output voltage: 1.25-30V adjustable
Dropout voltage: input voltage must be higher than output voltage of 2V
Output current: 0-3A, 3A maximum
Output power: 15W(If the temperature is high, please strengthen heat dissipation)
Conversion efficiency: 92% maximum (the higher the output voltage, the higher the efficiency)

Turn lamp current: constant current value * (1% -100%), turn lamp current and constant current value linkage, such as constant current value is 3A, turn the lamp current is set to 0.1 times that of the constant current (0.1 * 3 A = 0.1A), when the value of the constant current regulation into 2A, turn lamp current is 0.1 times that of the constant current (0.1 * 2A = 0.2A). The default shipment has to adjust to the 0.1 times

Indicator light:
constant current cc indicator light red,
charging indicator light red,
full-charged indicator light blue

The output ripple: 20M bandwidth (for reference only)
Input 12V output 5V 3A 60mV (MAX)
Working temperature: industrial grade (- 40 -- + 85 celsius degree) (when temperature is more than 40 degrees, please reduce power, or enhance heat dissipation)
Full load temperature rise: 45 celsius degree
No-load current: 10mA typical (12V to 4.2V)
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Output short circuit protection: yes, constant current (current setting constant current value)



508,51 din (1-9 kom)
457,66 din (10-99 kom)
355,96 din (>100 kom)
