Šifra proizvoda: #19515

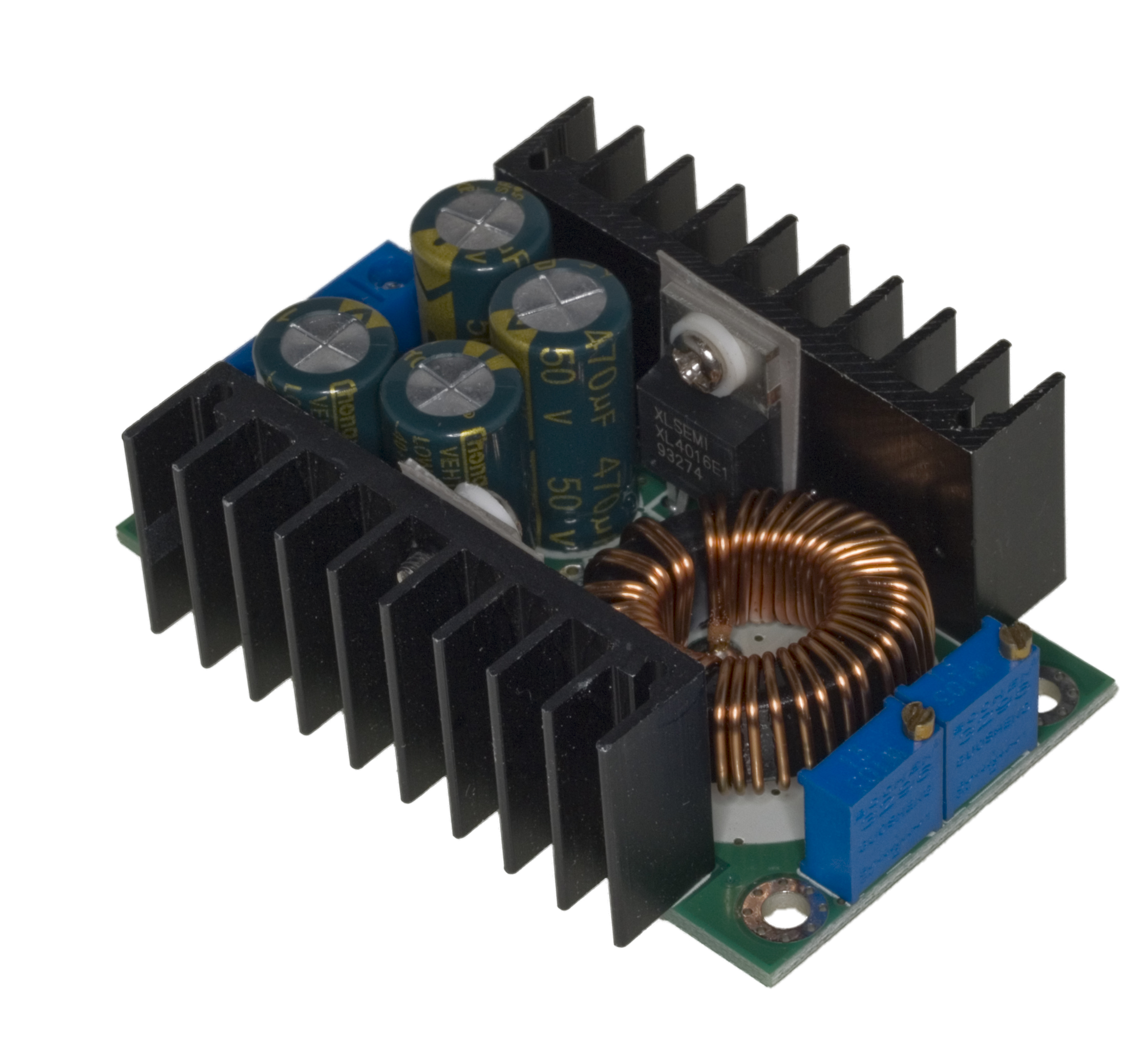

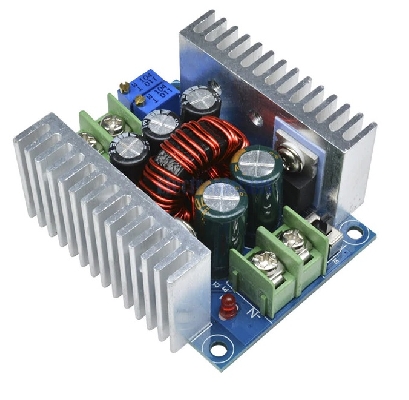

DC/DC BOOST 300W

DC/DC konvertor, 300W, Step down, 6-40V na 1.2-36V, 15A

Input Voltage: 6V to 40V DC(10V to 40V is suggested)

Output Voltage: 1.2V to 36V DC

Output Current: 20A(max.), 15A(suggested)

Efficiency: 95%(24V to 12V, 20A)

Output Ripple: ≤50mV

Wiring Method: Terminal

Short Circuit Protection: Self-recovery(cannot short circuit for long time)

Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"



VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment
EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
When input and output is common grounded, no-load CV output constant voltage,CC output constant curren
