Digitalni multimetar, UT58C

Na stanju


Šifra proizvoda: #19623

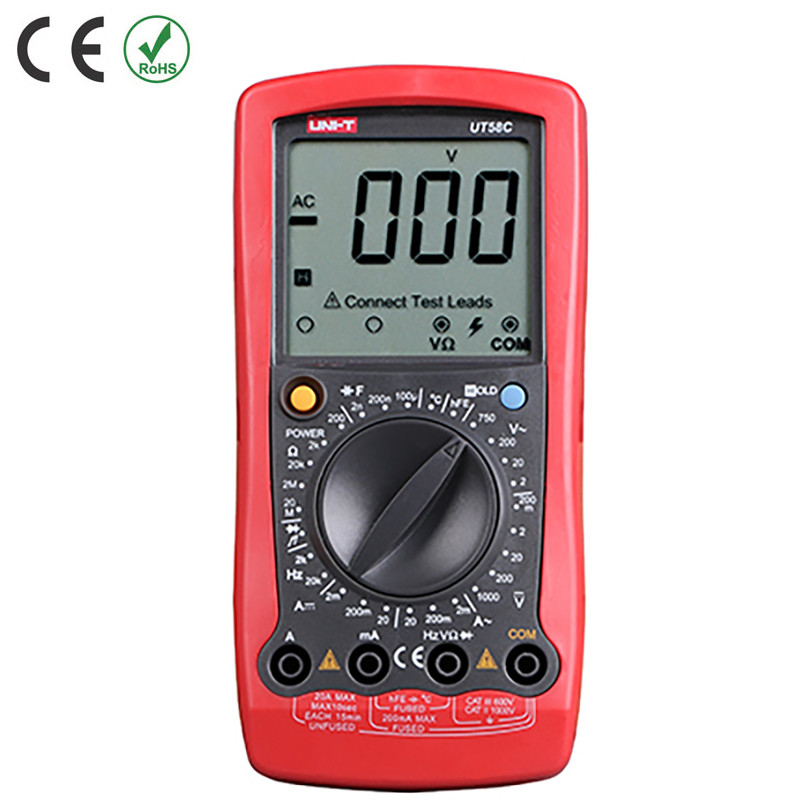

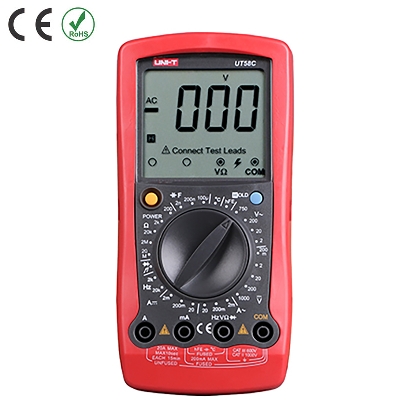

UNIMER UT58C

Digitalni multimetar, UT58C

UT58C General Digital Multimeter
UT58 series is a safe and reliable manual range digital multimeter that is easy to operate. Its large 60mm x 54mm LCD screen conveniently displays measurement results. This series digital multimeter satisfies a variety of applications in both electronics and electrical fields.

1. 2000 display count, refresh rate 2č3 times/s
2. Function symbols and test lead connection indication
3. Transistor measurement
4. Temperature measurement mode, with K-type temperature probe
5. Frequency measurement
6. Diode and continuity buzzer; auto power off; overload protection
7. Data hold; 20A AC/DC current measurement


Specifications Range UT58C
DC voltage (V) 200mV/2V/20V/200V/1000V ±(0.5%+1)
AC voltage (V) 2V/20V/200V/750V ±(0.8%+3)
DC current (A) 2mA/200mA/20A ±(0.8%+1)
AC current (A) 2mA/200mA/20A ±(1%+3)
Resistance (Ω) 200Ω/2kΩ/20kΩ/2MΩ/20MΩ ±(0.8%+1)
Capacitance (F) 2nF/200nF/100μF ±(4%+3)
Frequency (Hz) 2kHz/20kHz ±(1.5%+5)
Temperature (°C) -40°Cč1000°C ±(1%+3)
General Characteristics
Power 9V battery (6F22)
Display 60mm x 54mm
Product color Red and grey
Product net weight 350g



4.762,23 din (1-9 kom)
4.286,01 din (10-99 kom)
3.571,68 din (>100 kom)
