Digitalni multimetar, UT120C, džepni

Na stanju


Šifra proizvoda: #19624

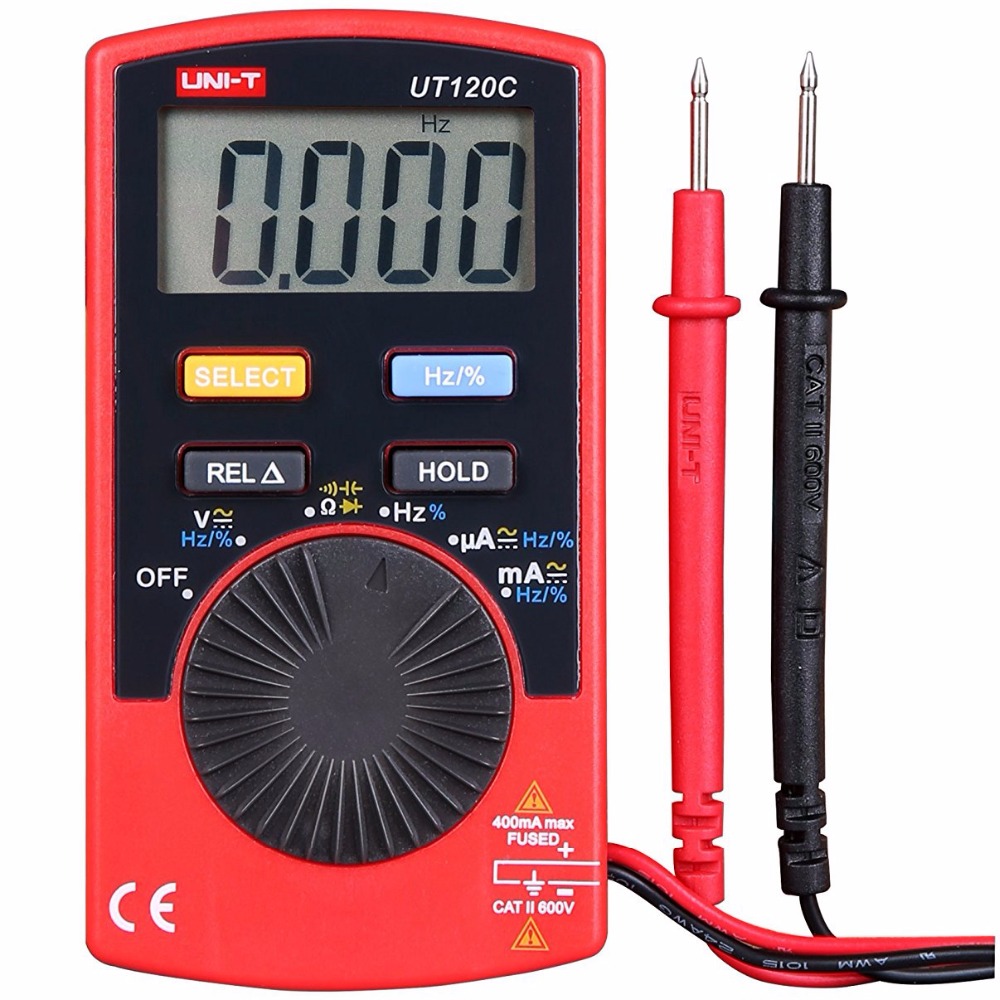

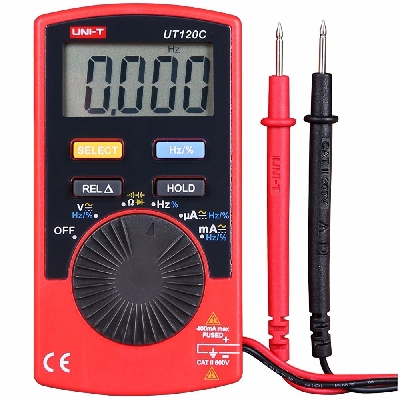

UNIMER UT120C

Digitalni multimetar, UT120C, džepni

UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.

Specifications Range UT120C
DC voltage (V) 600V ±(0.8%+1)
AC voltage (V) 600V ±(1.2%+3)
DC current (A) 400mA ±(1%+3)
AC current (A) 400mA ±(1.5%+5)
Resistance (Ω) 40MΩ ±(1%+2)
Capacitance (F) 100μF ±(4%+3)
Frequency (Hz) 10MHz ±(0.5%+3)
Features
Display count   4000
Auto range   √
Duty cycle 0.1%č99.9% √
Diode   √
Auto power off Around 30 minutes √
Continuity buzzer   √
Low battery indication ≤2.4V √
Data hold   √
Relative mode   √
Input impedance for DCV Around 10MΩ √
General Characteristics
Power 3V battery (CR2032)
Display 43mm x 22mm
Product color Red and grey
Product net weight 76g

2.764,29 din (1-9 kom)
2.487,85 din (10-99 kom)
2.073,21 din (>100 kom)
