Digitalni L/C/R metar, UT603

Na stanju


Šifra proizvoda: #19630

UNIMER UT603

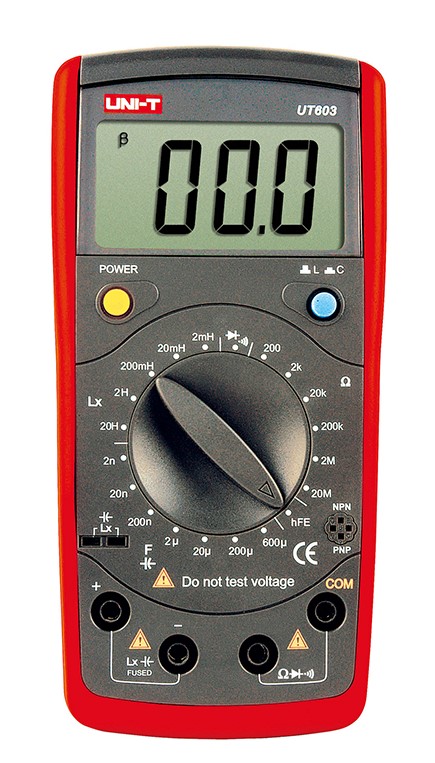

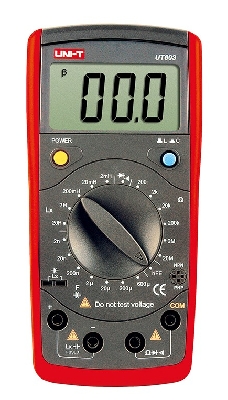

Digitalni L/C/R metar, UT603

UT603 Inductance Capacitance Meter
UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters.

Specifications Range
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+1)
Capacitance (F) 2nF/20nF/200nF/2uF/20uF/200uF/600uF ±(1%+5)
Inductance (H) 2mH/20mH/200mH/2H/20H ±(2%+8)

Features
Display count   2000
Manual range √
Diode   √
Transistor √
Continuity buzzer √
Low battery indication √

General Characterisitics
Power 9V battery (6F22)
Display 61mm x 32 mm

5.692,79 din (1-9 kom)
5.123,50 din (10-99 kom)
4.269,59 din (>100 kom)
