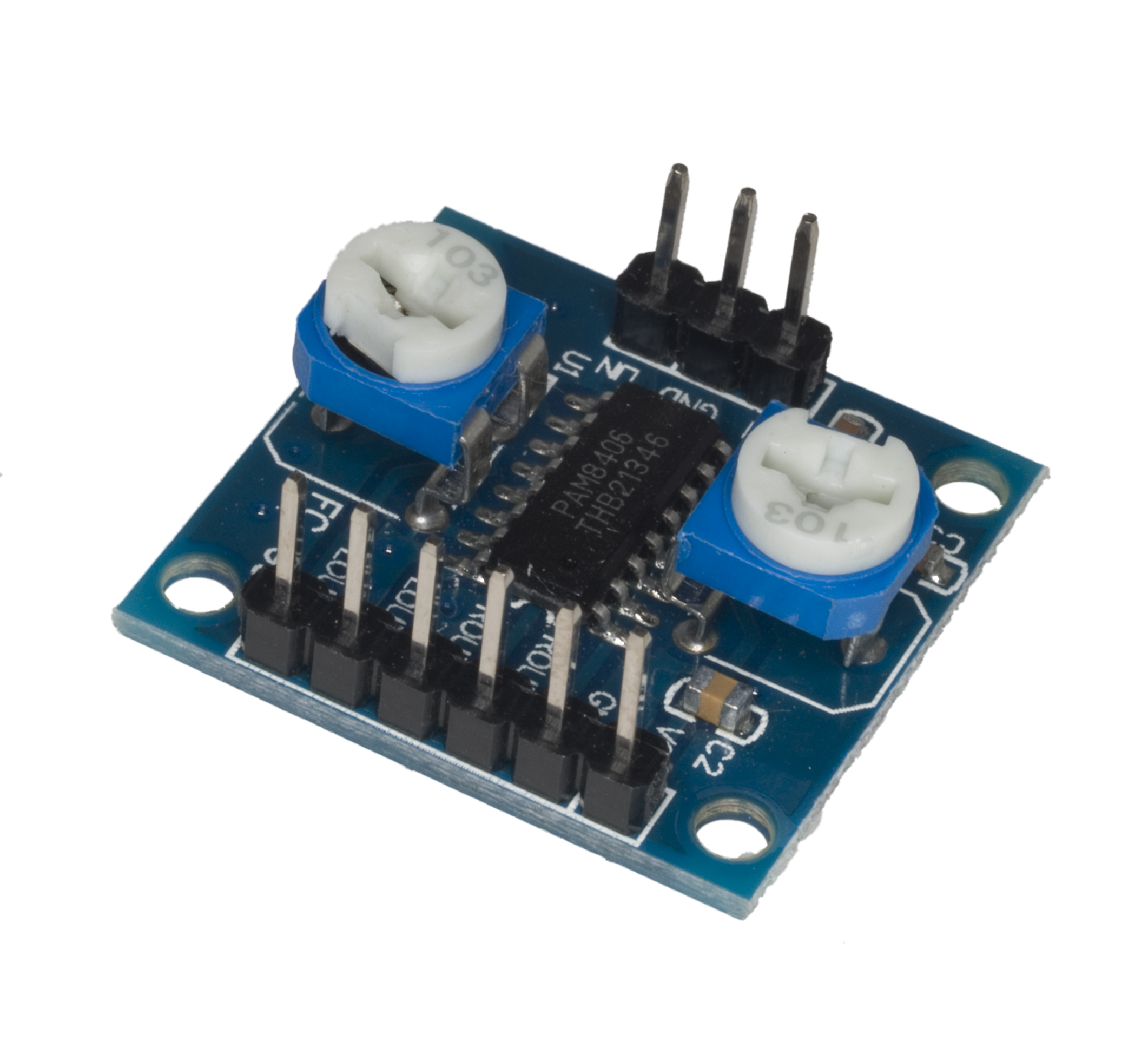

PAM8406 Digital Amplifier Board With Volume Potentiometer 5Wx2, 2.5-5.5V

Nema na stanju


Šifra proizvoda: #19844

PAM8406 AMP 2X5W

PAM8406 Digital Amplifier Board With Volume Potentiometer 5Wx2, 2.5-5.5V

Onboard chip: Onboard PAM8406 audio amplifier chip, sound quality is surging without noise;

Onboard potentiometer: Onboard left and right channel volume adjustment potentiometer;

Chip : Pam8406

Rated operating voltage : DC 2.5Vč5V,

Limited operating voltage : DC 5.5V

Category : Class D

Output power: Maximum output power 2X5W when 5V power supply;

Protection function: with thermal protection and short circuit protection function;

243,53 din (1-9 kom)
219,19 din (10-99 kom)
170,48 din (>100 kom)
