Šifra proizvoda: #20309

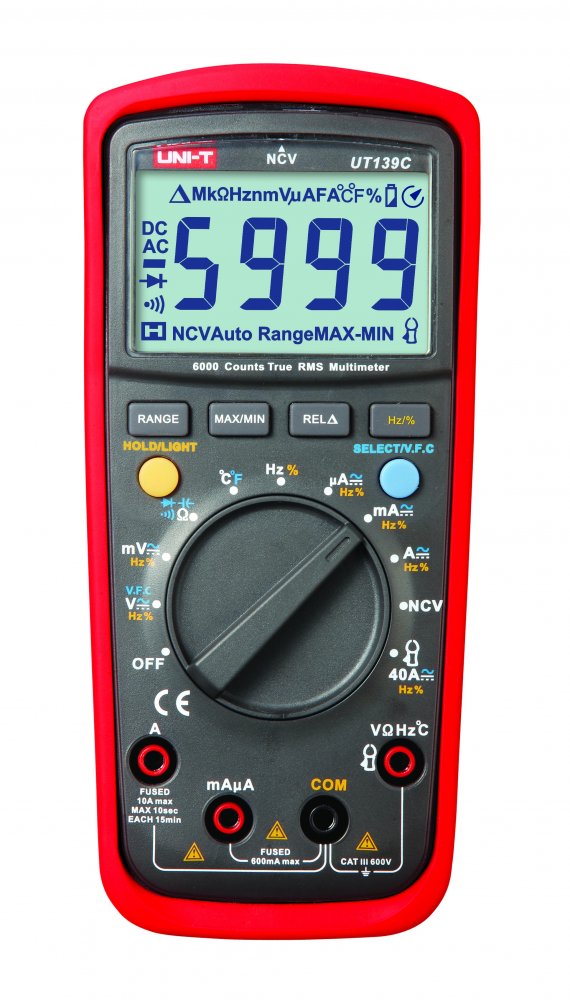

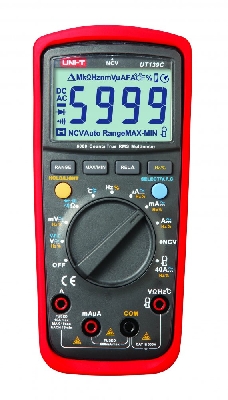

UNIMER UT139C

Digitalni multimetar, True RMS

DC Voltage: 600mV / 6V / 60V / 600V
- best accuracy: ±(0.5%+2)
AC Voltage: 6V / 60V / 600V
- best accuracy: ±(0.8%+3)
DC Current: 600µA / 6000µA / 60mA / 600mA / 6A / 10A
- best accuracy: ±(0.8%+2)
AC Current: 600µA / 6000µA / 60mA / 600mA / 6A / 10A
- best accuracy: ±(1%+3)
Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
- best accuracy: ±(0.8%+2)
Capacitance: 9.999nF / 99.99nF / 999.9nF / 9.999µF / 99.99µF / 999.9µF / 9.999mF / 99.99mF
- best accuracy: ±(4%+5)
Frequency: 10Hz č 10MHz
- best accuracy: ±(0.1%+4)
Temperature: -40°C č 1000°F
- best accuracy: ±(1%+3)
Temperature: -40°F č 1832°F
- best accuracy: ±(1.5%+5)

FEATURES:

Display Count: 6000
Auto Range: Yes
Manual Range: Yes
TRUE RMS: Yes
Bandwidth: 45Hz č 1kHz
Variable Frequency Device (VFD): Yes
Duty Cycle: 0.1% č 99.9%
Diode: around 3V
NCV: ≥ 100V rms
Auto Power Off: Around 15 Minutes
Continuity Buzzer: Yes
Low Battery Indications: ≤ 2.5V
Data Hold: Yes
Relative Mode: Yes
LCD Backlight: Yes
Input Protection: 600V rms
Input Impedance for DCV: 1 GΩ max.
