Šifra proizvoda: #20683

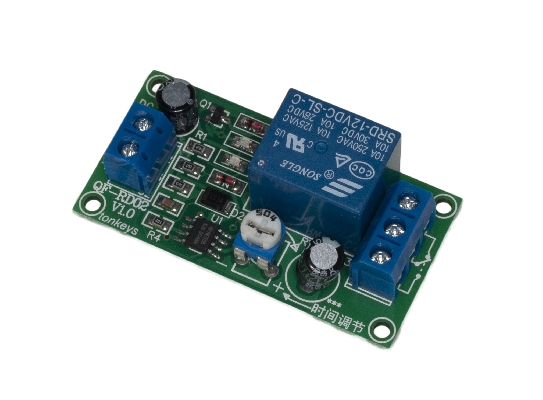

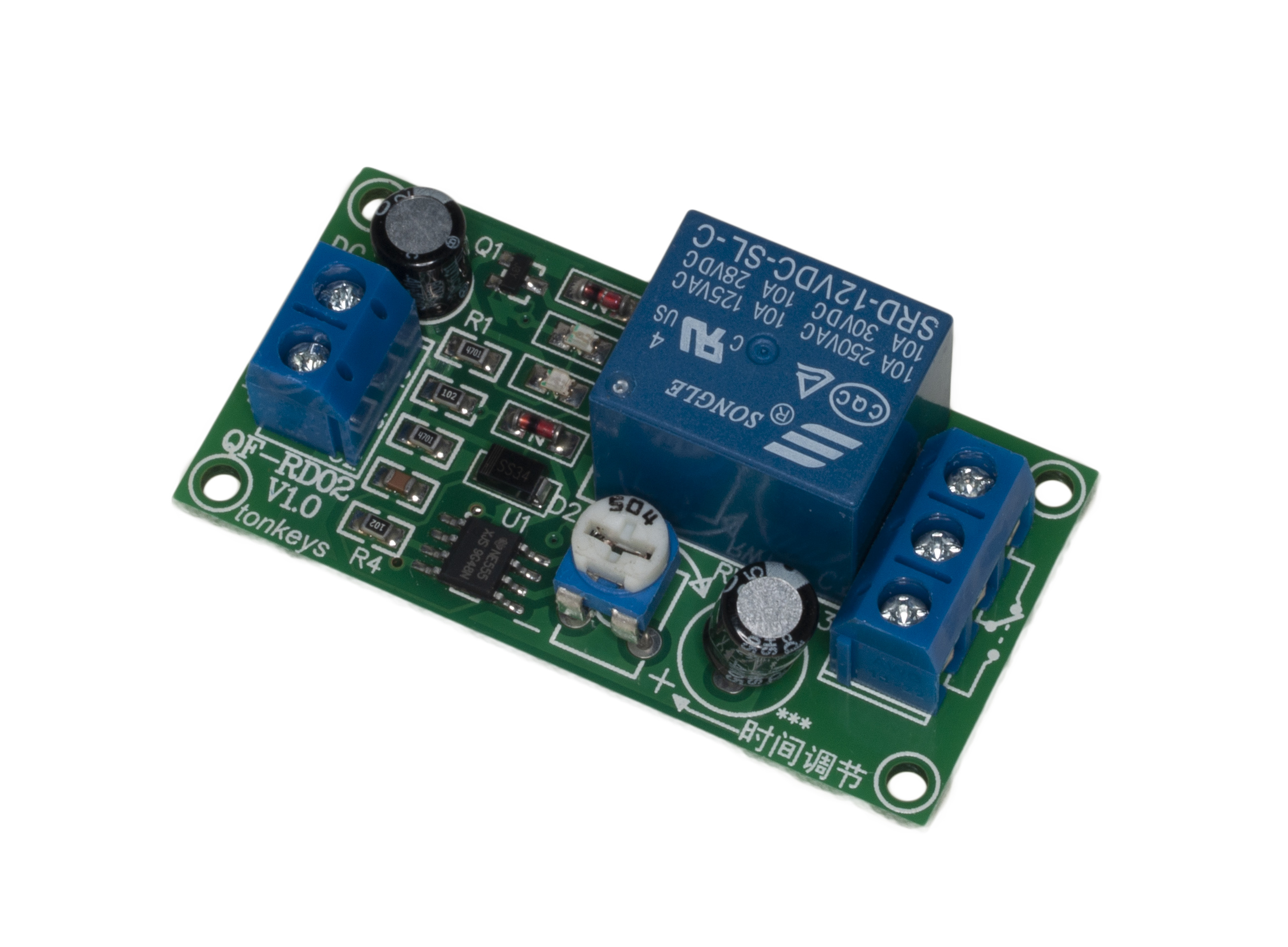

TIMER MH3

Tajmer modul, baziran na NE555, DC12V, 0-60 sekundi, relej 250V/10a

1.Module based on: NE555 chip.
2.Delay module: delay connect module
3.Input voltage: DC12V (DC 10v č 14.5v is okay.)
4.Control voltage: AC 0č250V / max. 10A, DC 0č30V / max. 10A the operating voltage: 12 volts DC; (otherwise 12V optional)
5.Max. load: 2200W
Feature:
This is a 12V Conduction delay relay module
- This is a brand new and high quality delay turn-on / Turn off module.
the use of high-performance timing CPU design.
- the power indicator LED and switch trigger timing indication
LEDs;
- The output can be connected to AC 250V 10A or DC 30V 10A
load;
- There is the chronopotentiometry regulation time, adjustable
from 0 to 60 seconds by default, or by changing the
capacitance adjustment time longer
Standby current: 5mA Action: 45mA
