Šifra proizvoda: #20916

UNIMER PCW05A

Digitalni multimetar

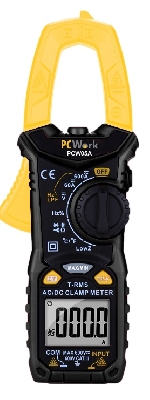

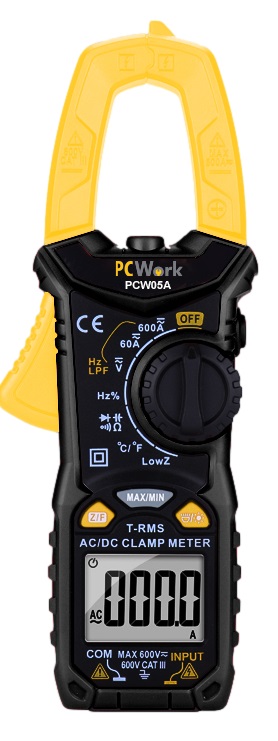

The perfect all-rounder: The PCW05A True RMS Digital Current Clamp Meter
- Perfect for professionals and ambitious hobbyists
- CAT III 600V; measures up to 600A AC/DC current
- 6000 counts, True RMS (root mean square) measurement, & automatic range selection
- Clamp opening: 2,5cm
- AC/DC voltage, current, resistance, capacitance, frequency, duty cycle and temperature measurement
- NCV (non-contact voltage detection), continuity and diode test
- LCD display with two-color (changes color to orange when high currents/voltages are measured).
- LPF (low pass filter), LowZ (low input impedance), & DCA ZERO (zero correction) function
- Data hold function with Max/Min function
- LED work light & compact size
- Great package design and illustrated manual in different languages: EN, GER, ES, FR, PT, PL, IT
- Including batteries, high quality test leads, temperature probe and bag


DC voltage
600mV/6V/60V/600V ±(0.5%+5)

AC voltage
600mV/6V/60V/600V ±(0.8%+5)

Direct current
60A/600A ±(2.5%+5)

Alternating current
60A/600A ±(2.5%+5 at 40-400Hz; 3.0%+10 others)

Resistance
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(1.0%+5)

Capacity
10nF/100nF/1000nF/10μF/100μF/1000μF/10mF/100mF±(4.0%+5)

Frequency
10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz ±(1.0%+3); 10MHz±(3,0%+3)

Duty cycle
1%č99% ±(3.0%+3)

Temperature (°C)
-20°C-0°C ±(5.0%), 0°C-400°C ±(1.0%),400°C-1000°C ±(2.0%)

Power supply
2*1.5V AAA batteries; auto power off function

Certifications
CE; EN61010-1,-2-030,-2-032; EN61326-1,-2-2,-3-2,-3-3;EN61000-3-2,-3-3; ROHS: 2011/65/EU & 2015/863/EU
