Šifra proizvoda: #21462

TP5000

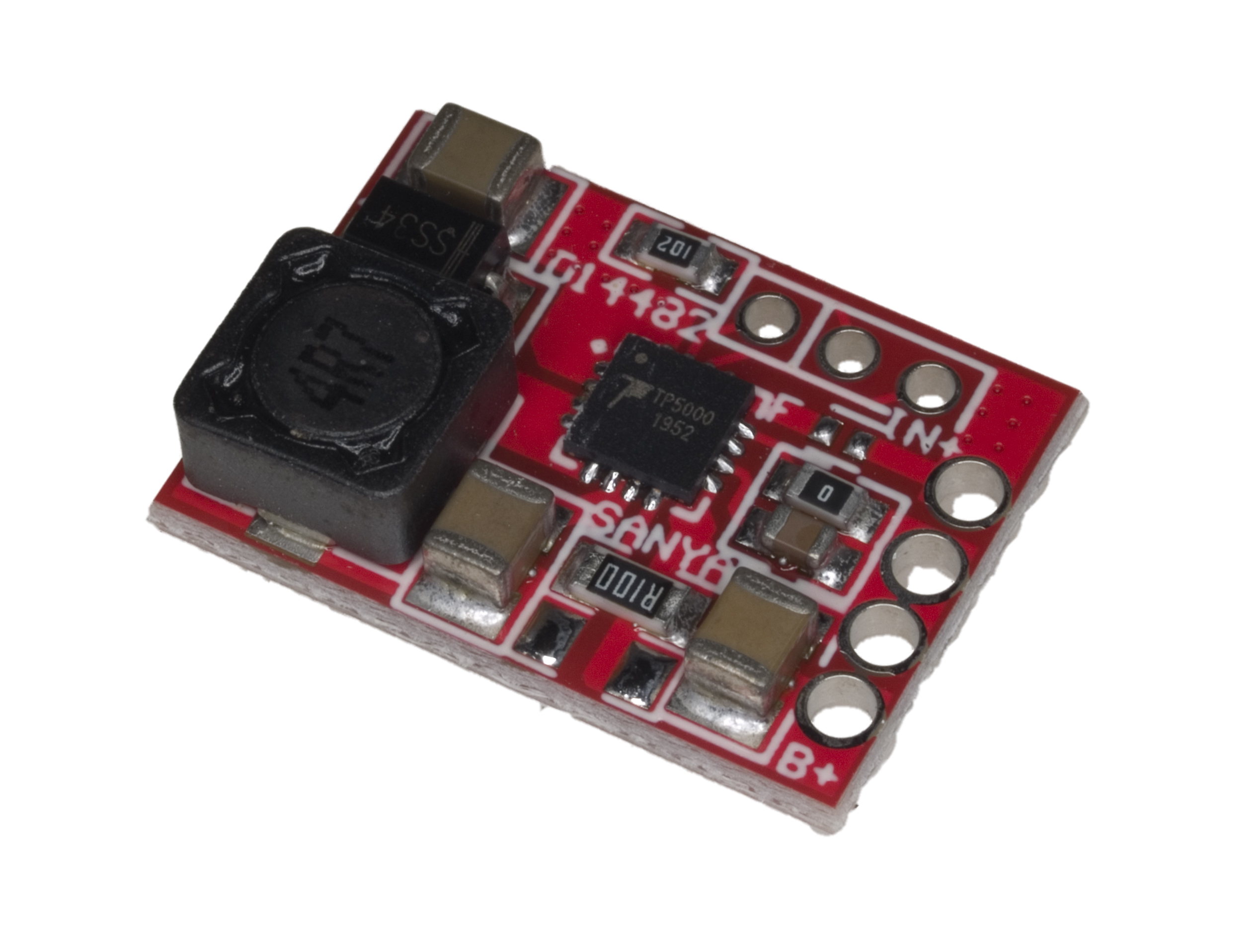

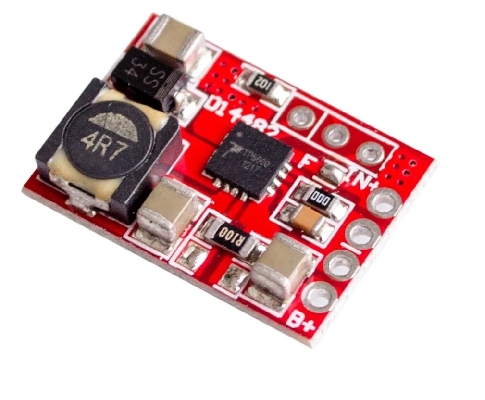

TP5000 2A switching 4.2V/3.6V lithium battery charger

LiPo and LiFePO4 battery charger module based on the TP5000 chip. It can handle batteries charged with 4.2 V and 3.6 V with a default charging current of 1 A.

On the board there is an LED indicator informing about the battery charge status - the charging mode is indicated by blinking red and green colors, while the green color indicates the battery charge.

0.5 A - 0.2 Ω resistor in place of R100
1 A - 0.1 Ω resistor at R100 (default)
1.5 A - 0.2 Ω resistor next to R100
2 A - 0.1 Ω resistor next to R100

Charging current above 1 A requires additional heat dissipation heat sink.

Features

Input voltage: 4.5 to 9V
Output voltage: 4.2V or 3.6V (default 4.2V)

Output current: 1 A (default)

LED indicator
Charging LiPo and LiFePO4 batteries
Dimensions: 21.5 x 14.5 x 4.2 mm
