Šifra proizvoda: #24326

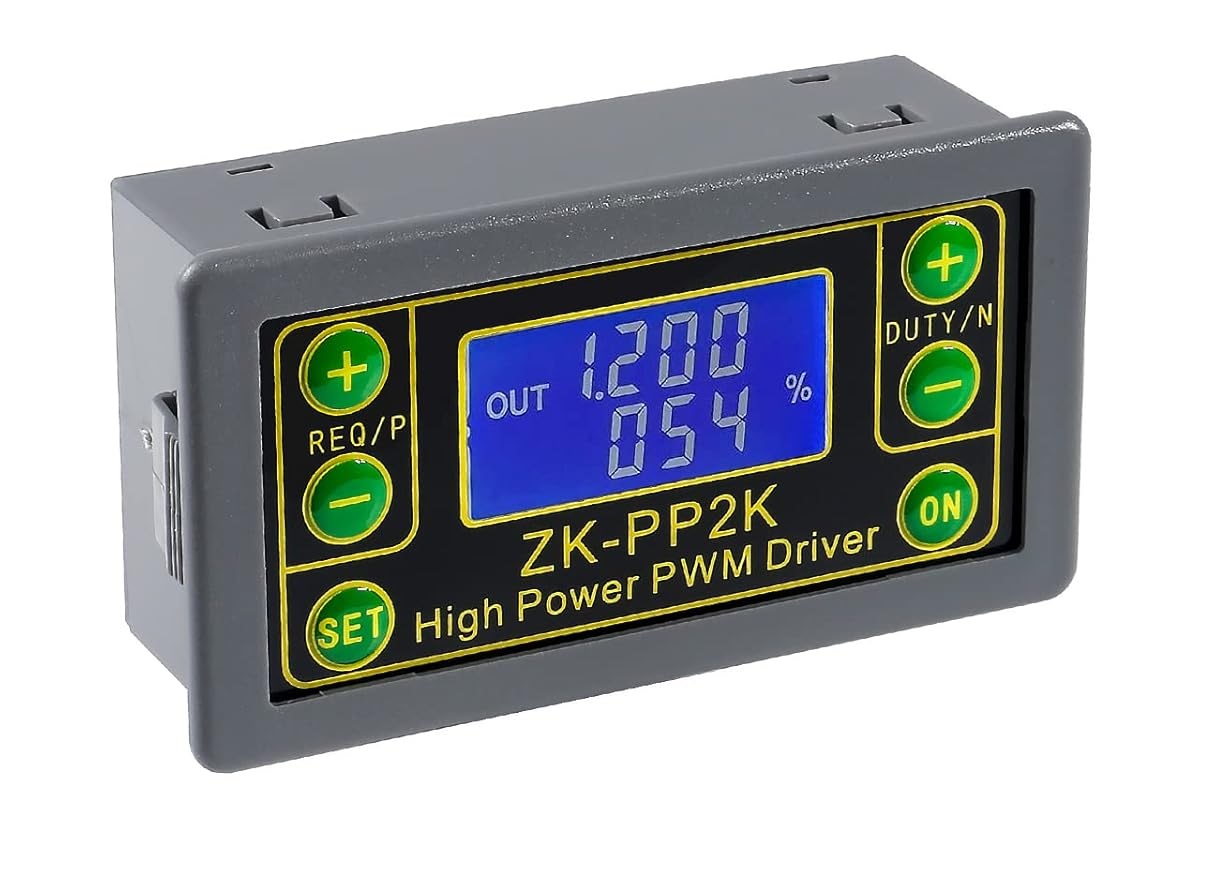

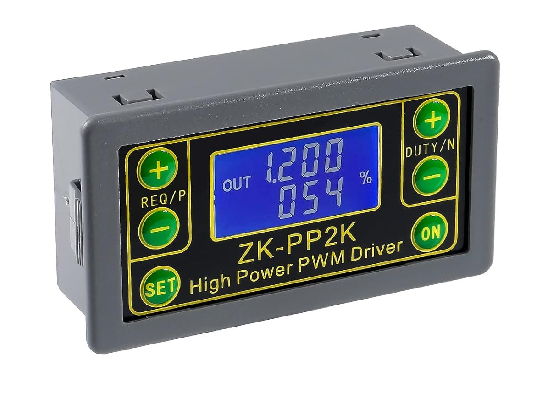

PWM ZK-PP2K 3.3-30V

ZK-PP2K PWM DC 3.3č30V 12V 24V Motor Speed Controller regulator 8A 150W Adjustable LED Dimmer Pulse

Features:
1.Dual mode:PWM mode and PULSE mode
2.LCD high definition display
3.Support frequency adjustment
4.Support duty cycle adjustment
5.High precision detection
6.Support power-down memory function
7.1-Channel signal output
8.Support reverse protection
9.Support enabled/disabled output
10.Direct drive LED/Motor/solenoid valve

Specifications:
1.Product name: ZK-PP2K PWM Signal Generator
2.Model: ZK-PP2K
3.Work voltage:DC 3.3V-30V
4.Frequency range:1Hzč150KHz
5.Frequency accuracy:2%
6.Duty cycle range:0.00percent-100percent
7.Output Current:8A(Max)
8.Number of pulses:1č9999 or Infinite
9.Delay time:0.000sč9999s
10.Pulse width:0.000sč9999s
11.Time accuracy:1ms
12.Output amplitude:Same to input voltage
13.Work Temperature:-20℃č85℃
14.Work Humidity:0%č95%RH

Note:
1.It’s 1-channel signal output signals.
2.Its maximum output current is 8A.Therefore it can directly drive high-power devices such motor.
3.Please read use manual and description before use.
