Šifra proizvoda: #24261

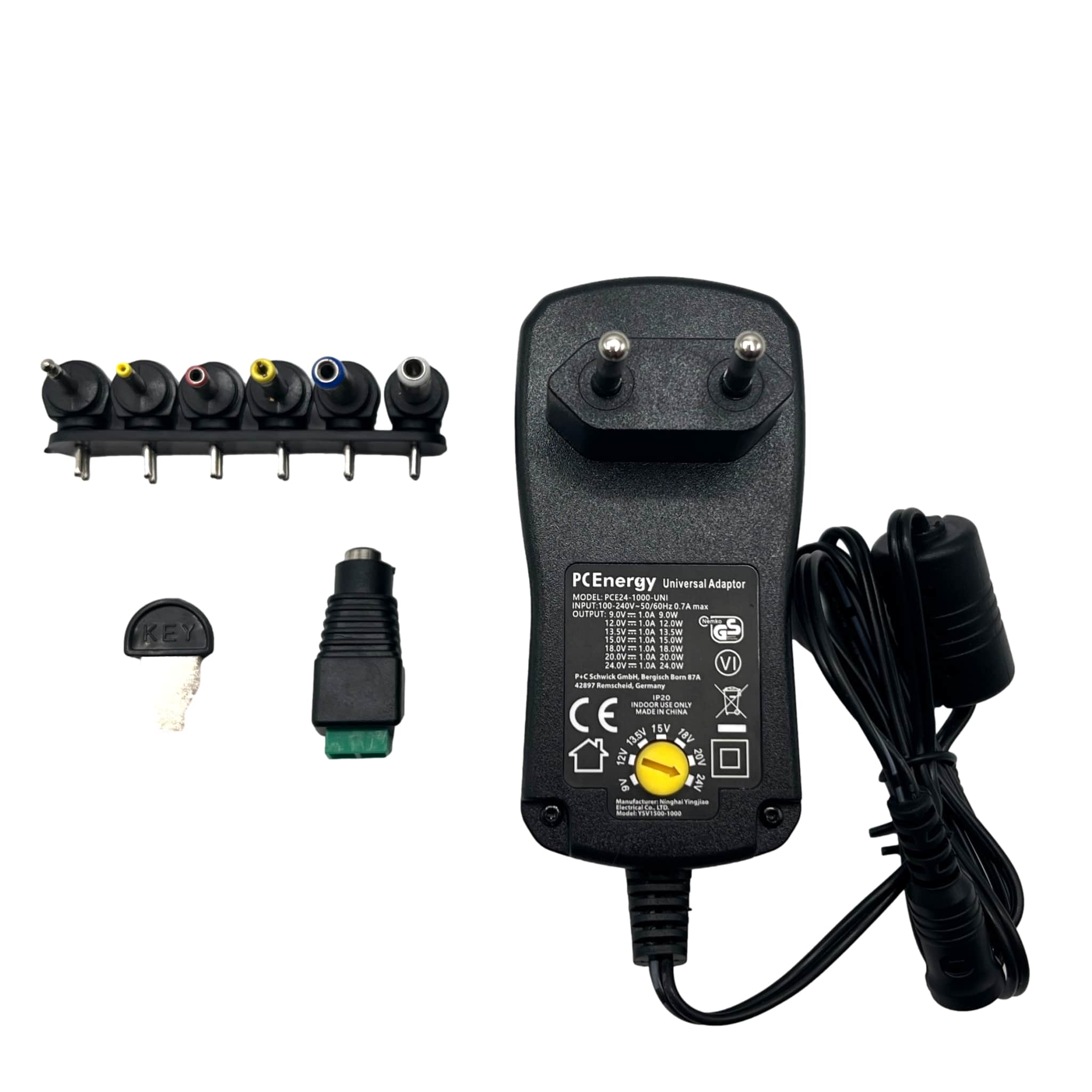

ADAPTER PCE24-1000-U

Univerzalni adapter, 1000mA

High efficiency (up to 85%)
Adjustable output voltage: 9V, 12V, 13.5V, 15V, 18V, 20V, 24V
Interchangeable connectors: 2.35 x 0.7mm; 3.5 x 1.35mm; 4.0 x 1.7mm; 5.5 x 2.1mm; 5.5 x 2.5mm hollow
plug(outside/inside), 2.5 mono jack plug, LED terminal strip
Protected against overload, overvoltage, as well as short circuits
RoHS and REACH compliant
GS certified
DIN standard compliant: EN62368-; EN60950; EN 61558; EN 55032; EN55035; EN 61000-3-2; EN 61000-3-3

Input voltage: 100-240V 50/60 HZ alternating voltage
Output voltage: 9-24V DC
Output current: 1A
Power: max 24 Watt
Operating temperature: 0 °C to 40 °C
Relative humidity during operation: 25 - 75%.
Storage temperature: -10 °C to 80 °C
Dimensions (housing without cable): 92.2 x 46.2 x 35.8mm (LxWxH)
